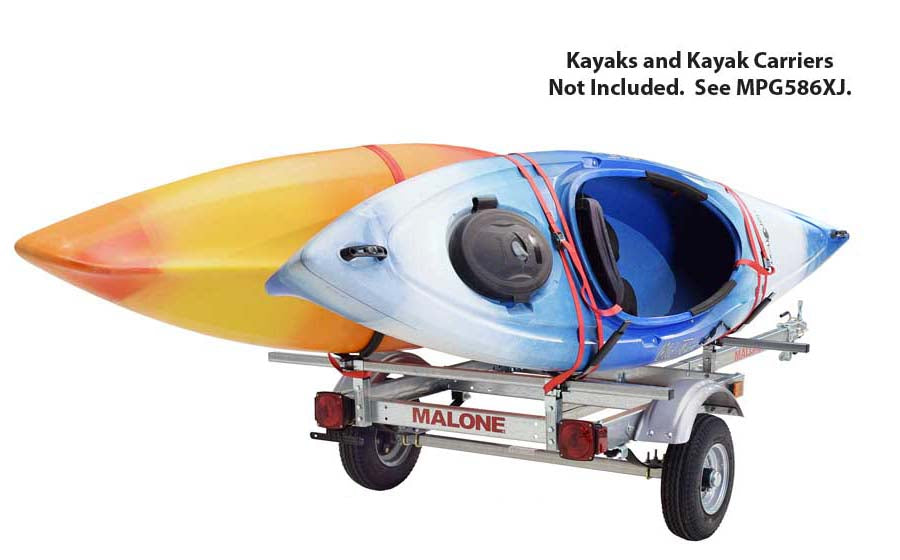

Malone Trailer EcoLight Sport

The EcoLight™ is our most affordable kayak trailer. Every model is proudly designed and manufactured in the USA from high-quality galvanized steel, ensuring many years of use. These trailers have a maximum speed limit of 65 mph and can carry loads up to 400 lbs. They are equipped with an extra-long reinforced drawbar, 58" wide steel load bars, molded fenders, 8" high-speed tires, powder-coated rims, and a 2" hitch with a lift handle.

This trailer serves as the base chassis for the EcoLight™ packages and is DOT and Transport Canada certified. All parts and labor are covered by a five-year limited warranty. It assembles in 3 to 5 hours using common tools. Detailed assembly instructions are provided.

• Features :

• Marine-grade galvanized frame

• DOT-approved submersible LED lighting

• 8" five-bolt, high-speed, powder-coated wheels

• Injection-molded fenders

• 58" coated steel load bars

• Two-piece extended drawbar

• Four-wire flat harness

• Drawbar protector plate

• Leaf spring suspension

• Heavy-duty galvanized axle

• Five-year limited warranty

• Made in the USA
•

• Specifications:

• Width: 58" (55" without crossbars)

• Assembled Frame Width (without fenders): 40"

• Length: 10' 9"

• Weight: 145 lbs. (without accessories)

• Capacity: 400 lbs / 14' canoe or kayak

• Frame: Marine-grade galvanized steel

• Ball Size Required for Vehicle Attachment: 2"

• Ball Height: 14" from ground to top of ball

• Wheel Specifications: 8" diameter; 65 MPH speed rating

• Tire Specifications: 4.80 / 4.00-8", Load Range B (785 lbs)

• Recommended Tire Pressure: 40 PSI, 90 PSI max.

• Tongue Weight (empty): 12 lbs

• Crossbar Span: 38.5" (fixed)

• Crossbar Height from Ground: 26"
